Database

The database handles the storing of long term information, focusing on user accounts, questions, and feedback (summaries of taken quizzes)

The database is written in SQLite and stored as a local file.

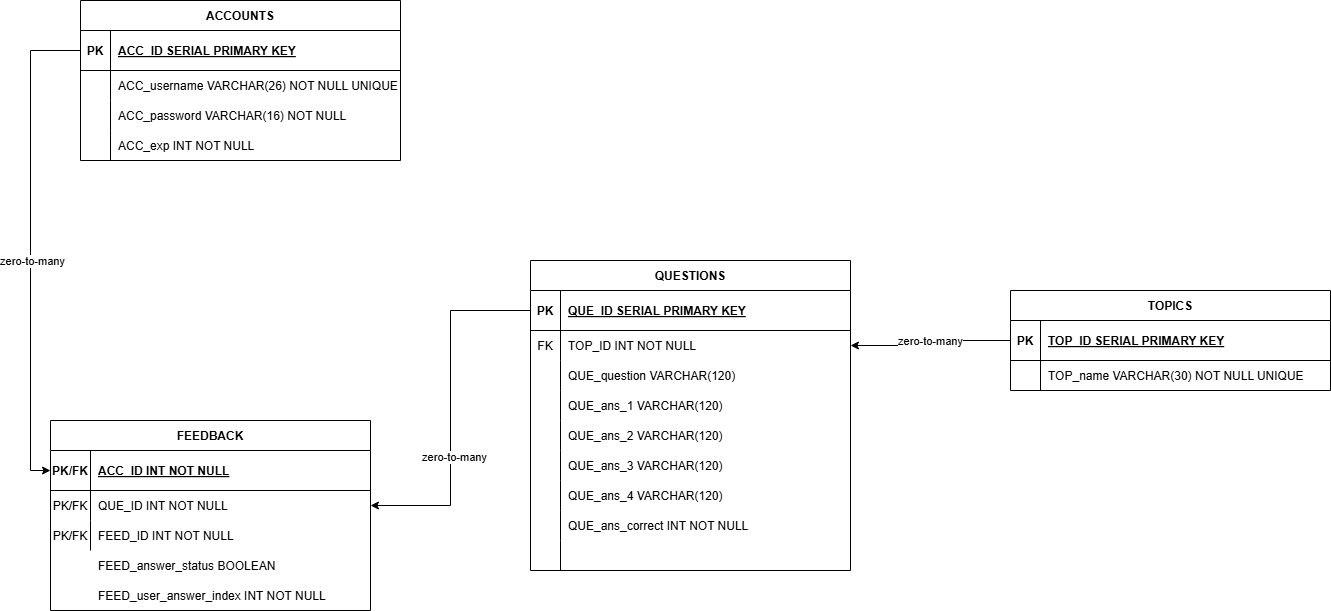

ERD

Here is an overview of the design for the database, where we have 4 tables:

• an accounts table to store account data for users

• a questions table to store questions

• topics to group the questions by

• a feedback table to store answers for any quizzes the user has taken.

ACCOUNTS TABLE

This table holds data for user accounts.

Attribute	Purpose	Data type & constraints
ACC_ID	Unique ID	SERIAL PRIMARY KEY
ACC_username	Unique username	VARCHAR(26) NOT NULL UNIQUE
ACC_password	Password, min length 8, requires 1 digit and 1 non-alphanumeric character for security	VARCHAR(16) NOT NULL CHECK (length(ACC_password)>=8 AND ACC_password GLOB ‘[0-9]’ AND ACC_password GLOB ‘[^a-zA-Z0-9]’)
ACC_exp	Account experience level tracking (unused)	INT NOT NULL CHECK(ACC_exp >= 0)

ACC_username is constrained as unique so that users can easily identify each other.

ACC_password has constraints which enforce use of digits and non-alphanumeric characters.

ACC_exp is currently unused, it was intended to allow accounts could have progression, but this feature was scrapped.

FEEDBACK/QUIZ TABLE

The feedback table stores completed quizzes by a user.

Attribute	Purpose	Data type & constraints
FEED_ID	Identifier for feedback	INT NOT NULL
ACC_ID	Identifier for account	INT NOT NULL, REFERENCES ACCOUNTS (ACC_ID)
QUE_ID	Question number in quiz	INT NOT NULL, REFERENCES QUESTIONS (QUE_ID)
FEED_answer_status	Answer correct/incorrect	BOOLEAN NOT NULL CHECK (FEED_answer_status IN (0, 1))
FEED_user_answer_index	Which answer the user selected	INT NOT NULL CHECK (FEED_user_answer_index BETWEEN 0 AND 3)

The feedback table intersects between the accounts and questions table, storing the results of a users quiz for use in feedback.

The table uses a composite key with FEED_ID, QUE_ID and ACC_ID:

• FEED_ID differentiates each quiz/feedback object

• ACC_ID points to which user the feedback is for

• QUE_ID refers to which question the entry regards

• FEED_answer_status stores if the question was answered correctly.

• FEED_user_answer_index stores which option the user chose, allowing us to show the user what they got right/wrong.

QUESTIONS TABLE

The questions table stores all of our questions and associated data.

Attribute	Purpose	Data type & constraints
QUE_ID	Unique question ID	SERIAL PRIMARY KEY
TOP_ID	Topic ID	INT NOT NULL, REFERENCES TOPICS (TOP_ID)
QUE_question	Question text	VARCHAR(120) NOT NULL
QUE_ans_1	Answer 1 text	VARCHAR(120) NOT NULL
QUE_ans_2	Answer 2 text	VARCHAR(120) NOT NULL
QUE_ans_3	Answer 3 text	VARCHAR(120) NOT NULL
QUE_ans_4	Answer 4 text	VARCHAR(120) NOT NULL
QUE_ans_correct	Correct answer index (0-3)	INT NOT NULL CHECK (QUE_ans_correct BETWEEN 0 AND 3)

TOP_ID denotes the topic the question is associated with.

QUE_question stores the question text.

QUE_ans_1-4 stores each of the 4 answers texts.

QUE_ans_correct stores which answer is correct, it is constrained to only accept an index of 0-3 matching the 4 possible answers.

TOPIC TABLE

As shown above, each question belongs to a topic.

Attribute	Purpose	Data type & constraints
TOP_ID	Unique topic ID	SERIAL PRIMARY KEY
TOP_name	Topic name	VARCHAR(30) NOT NULL UNIQUE

In the topic table we have a serial ID for the primary key and a unique TOP_name for a topic title.
